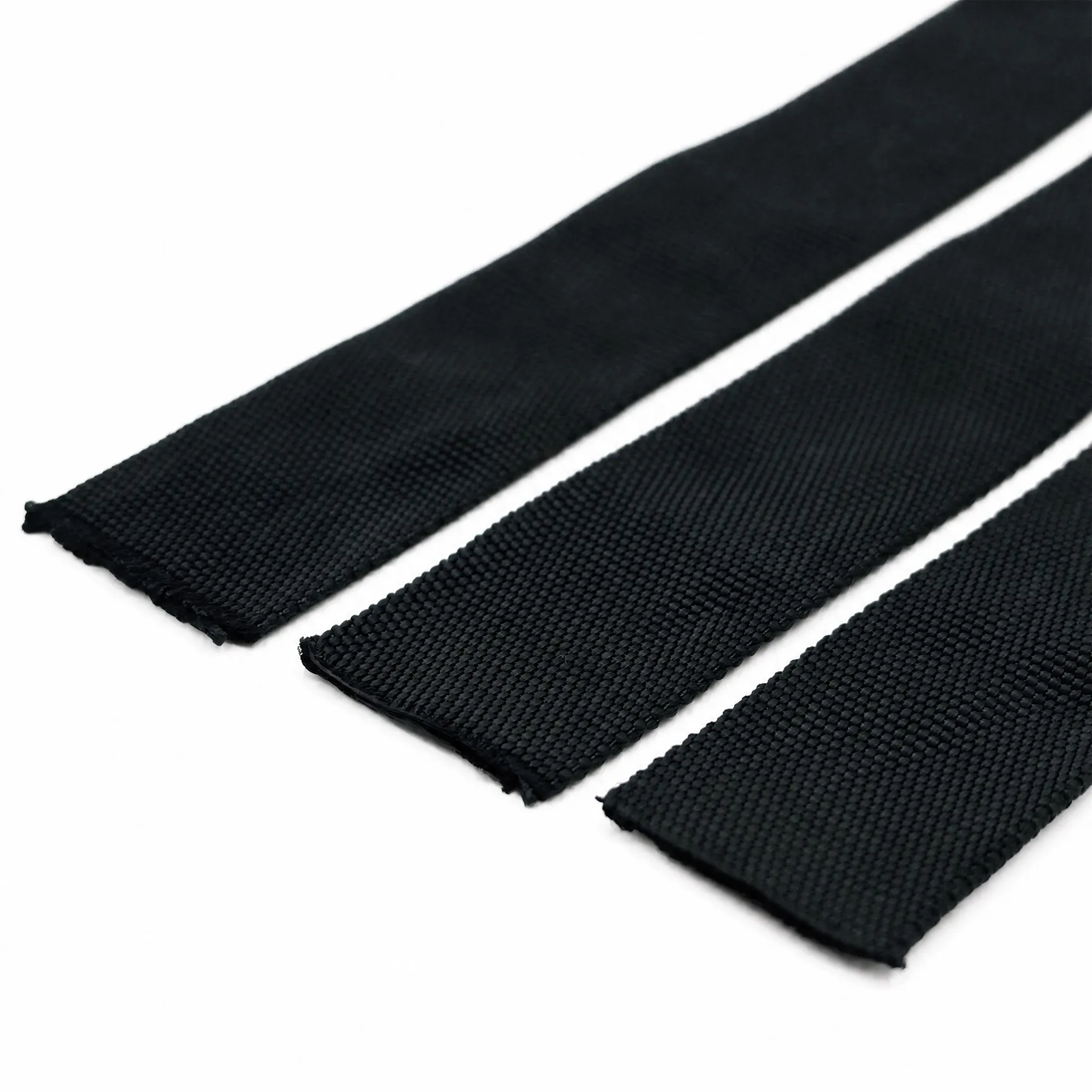

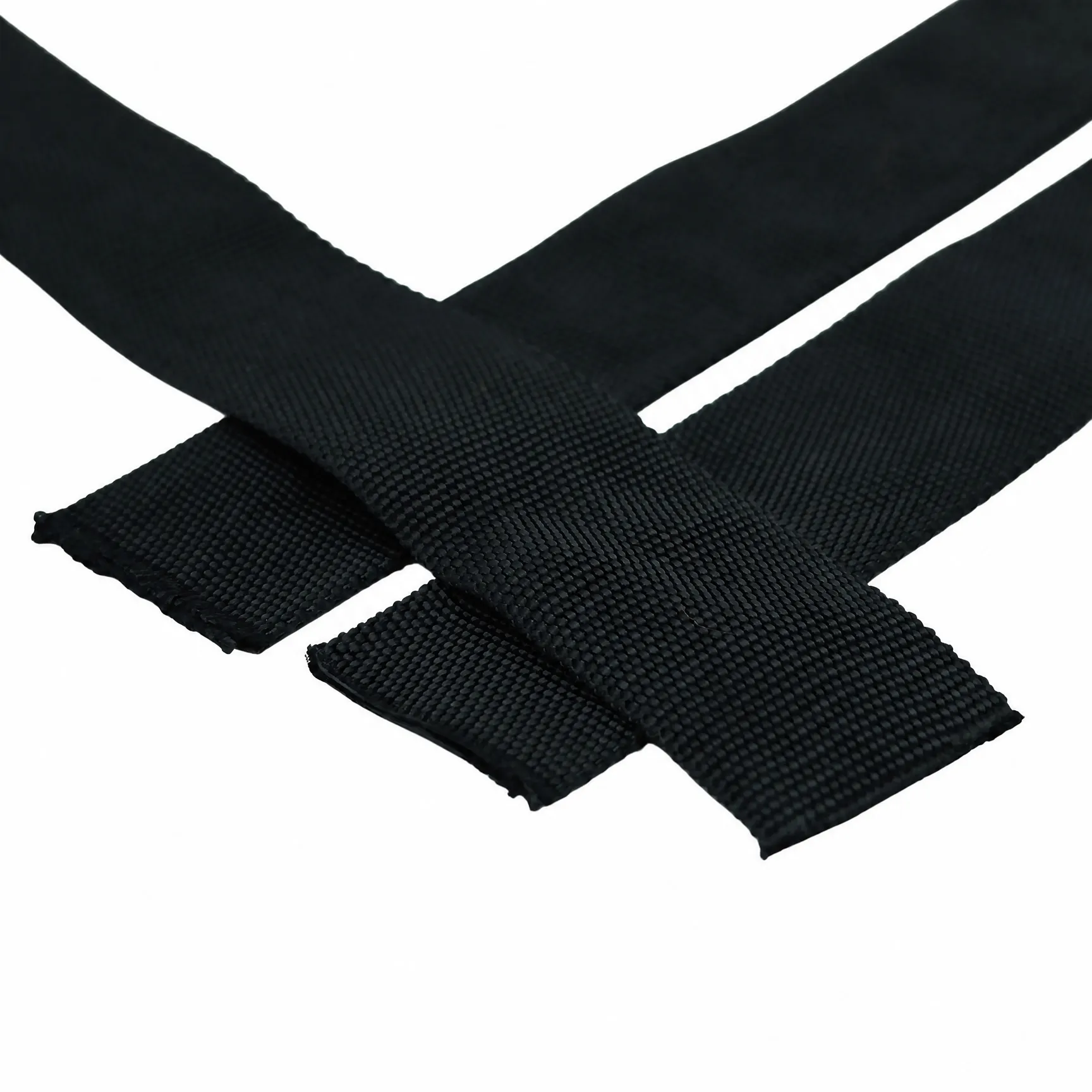

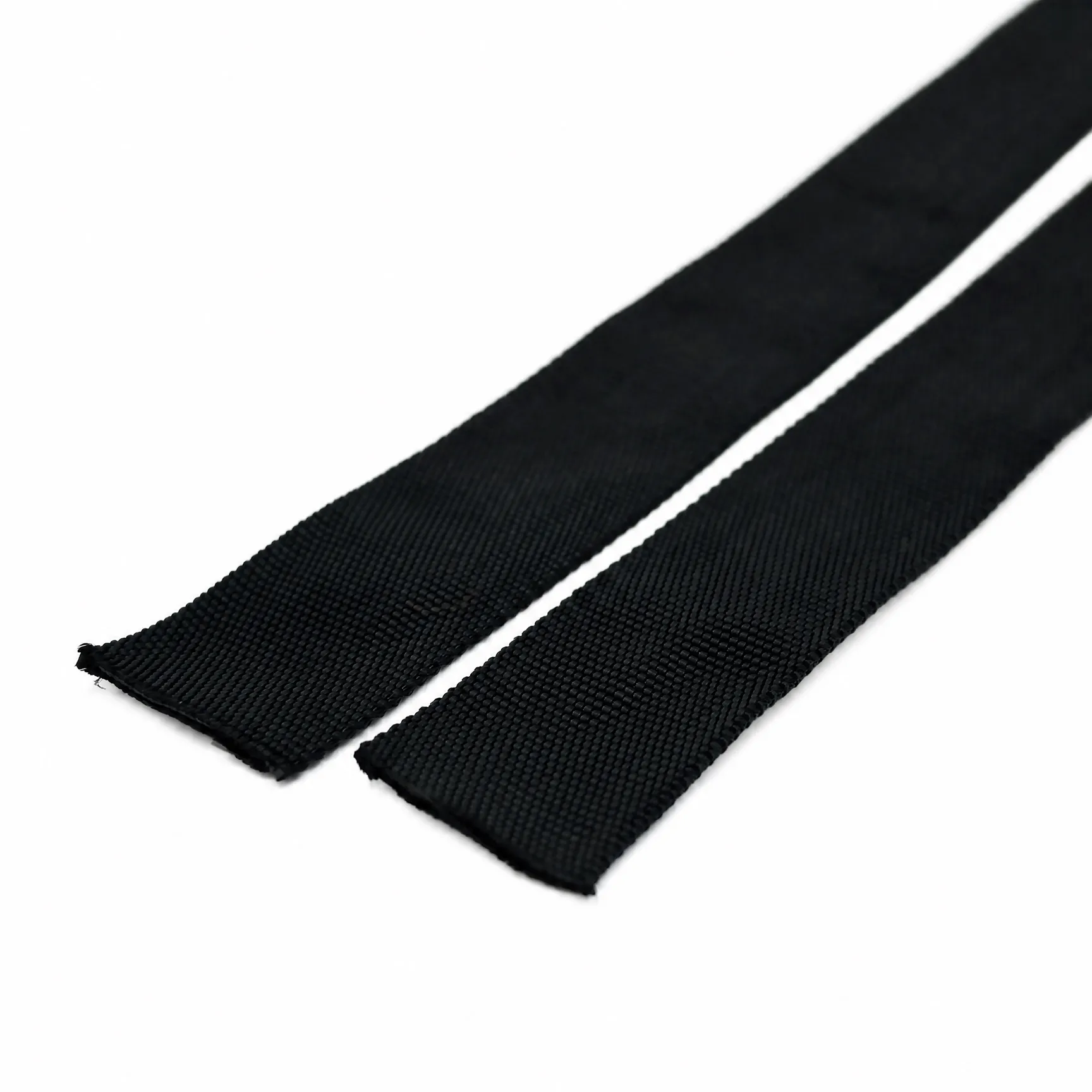

TS2562 is braided with high fiber nylon compound filaments. Suitable for extreme application conditions and harsh environments. Provides excellent tensile strength, blast resistance and abrasion protection. The sheath provides effective noise reduction, corrosion resistance and ensures non-toxic safety.
The PA Textile Sleeving-TS2562 is a high-performance braided sleeve manufactured from high-fiber nylon compound multifilaments, designed to protect rubber hoses, wiring harnesses, and electrical cable sleeve assemblies in demanding industrial and automotive environments. The TS2562 combines ISO 6722:2013 Class 7 abrasion resistance, wide temperature tolerance from -40°C to +150°C, and inherent blast resistance in a flexible, lightweight sheath. When specifying protective sleeving for industrial applications, the relevant question is not which sleeve fits over the hose — it is which sleeve will still be performing two years from now under continuous abrasion and temperature cycling. The TS2562 is engineered with that long-term durability requirement as the primary design target.
In heavy-duty machinery and industrial equipment environments, rubber hoses and wiring harnesses are continuously exposed to abrasion, vibration, and mechanical impact. Hydraulic lines running through press frames, conveyor systems, and robotic assembly enclosures contact metal edges, brackets, and other hoses throughout every operating cycle. The PA Textile Sleeving-TS2562 wraps around hose and cable assemblies to intercept wear before it reaches the protected surface. Its woven structure distributes contact load across the braid, rather than concentrating stress at a single point — functioning much like a woven armor layer where the interlocked fiber network shares the load across a wide area. For applications requiring an electrical cable sleeve with bundling capability — such as machine enclosure wiring, hydraulic manifold routing, or multi-axis robot cable management — the TS2562 consolidates multiple runs cleanly while reducing vibration-induced chafing and noise between adjacent conductors. Field observations consistently show that abrasion damage on unsleeved hose assemblies concentrates at the tightest bend radius in the routing path, not at end fittings; the TS2562 addresses this directly with its uniform braid coverage at every point along the assembly.
The PA Textile Sleeving-TS2562 is rated for continuous service from -40°C to +150°C, making it suitable for both high-temperature engine bays and cold-climate outdoor installations. The -40°C lower limit is important in practice: textile sleeving that lacks verified low-temperature flexibility can become brittle during cold-weather installation and crack under bending stress on the job site — a failure mode that is easy to overlook at the selection stage and costly to remediate once materials are already delivered and scheduled for installation. The TS2562 heat aging result of 150°C for 240 hours confirms that the nylon compound retains its mechanical properties under sustained thermal load, not just brief temperature excursions. Combined with corrosion resistance and non-toxic material composition, the TS2562 is suitable for chemical-adjacent processing lines, outdoor cable management, and food-industry equipment where material safety is a procurement consideration.
The two primary verified performance results for the PA Textile Sleeving-TS2562 are:
Buyers evaluating the TS2562 as an outer jacket for high voltage insulation sleeve configurations, or as a standalone electrical cable sleeve for industrial control wiring, should request product-specific test reports from the sales team for verification against their application voltage class and temperature requirements.
The manufacturing facility holding this product line is certified to ISO 9001, IATF 16949, ISO 14001, ISO 45001, and military standard GJB9001C. This certification framework is applicable to automotive Tier 1, industrial, and defense supply chains where documented quality management and environmental compliance are required as part of supplier qualification. Buyers requiring certification copies for supplier qualification audits should contact the sales team directly.
| Test Item | Test Method | Test Result |
|---|---|---|
| Heat Aging | 150°C, 240 H | Pass |
| Scrape Abrasion | ISO 6722:2013 | Class 7, 140,000 cycles |
Values are representative. Product-specific test reports available on request.
| Part No. | Nominal I.D. (mm) | Layflat Width (mm) | Thickness (mm) | Reel Length (m/reel) | Art. No. |
|---|---|---|---|---|---|
| TS25621001 | 10 | 20 ± 2 | 1.1 ± 0.2 | 50 | NC-010 |
| TS25621301 | 13 | 25 ± 2 | 1.1 ± 0.2 | 50 | NC-013 |
| TS25621601 | 16 | 30 ± 2 | 1.1 ± 0.2 | 50 | NC-016 |
| TS25621901 | 19 | 35 ± 2 | 1.1 ± 0.2 | 50 | NC-019 |
| TS25622301 | 23 | 40 ± 2 | 1.1 ± 0.2 | 50 | NC-023 |
| TS25622901 | 29 | 50 ± 2 | 1.1 ± 0.2 | 50 | NC-029 |
| TS25623201 | 32 | 55 ± 2 | 1.1 ± 0.2 | 50 | NC-032 |
| TS25623801 | 38 | 65 ± 3 | 1.1 ± 0.2 | 50 | NC-038 |
| TS25624201 | 42 | 70 ± 3 | 1.1 ± 0.2 | 50 | NC-042 |
| TS25624801 | 48 | 80 ± 3 | 1.1 ± 0.2 | 50 | NC-048 |
| TS25625501 | 55 | 90 ± 3 | 1.1 ± 0.2 | 50 | NC-055 |
| TS25626101 | 61 | 100 ± 3 | 1.1 ± 0.2 | 50 | NC-061 |
| TS25626801 | 68 | 110 ± 3 | 1.1 ± 0.2 | 50 | NC-068 |
| TS25627401 | 74 | 120 ± 3 | 1.1 ± 0.2 | 50 | NC-074 |
* Available cut to fixed length on request. * Custom sizes available upon request.
The PA Textile Sleeving-TS2562 is available in 14 standard nominal I.D. sizes from 10 mm to 74 mm. The appropriate selection starting point is the outside diameter of the hose or cable bundle to be protected: choose a nominal I.D. that provides a snug fit — sufficient to maintain braid tension and coverage — without being forced onto the assembly, which would open the braid weave and reduce protective density at the points of highest contact stress.
The 13 mm variant (NC-013) corresponds closely to the 1/2-inch format used in the 1 2 inch wire loom category common in North American installation references, making it a practical drop-in choice for single-hose hydraulic runs and compact wiring harnesses. Larger sizes from 29 mm to 74 mm accommodate multi-hose bundles, thick-wall transfer lines, and grouped cable assemblies. For high voltage insulation sleeve support requirements or blast-resistant electrical cable sleeve outer jacket specifications, the ISO 6722:2013 Class 7 abrasion rating and the 150°C heat aging certification are the primary technical qualification references. Custom lengths and non-standard sizes are available on request.
TS2562 is braided with high fiber nylon compound filaments. Suitable for extreme application conditions and harsh environments. Provides excellent tensile strength, blast resistance and abrasion protection. The sheath provides effective noise reduction, corrosion resistance and ensures non-toxic safety.
