Aluminum Foil Fiberglass Wrap-RW1460: Product Overview

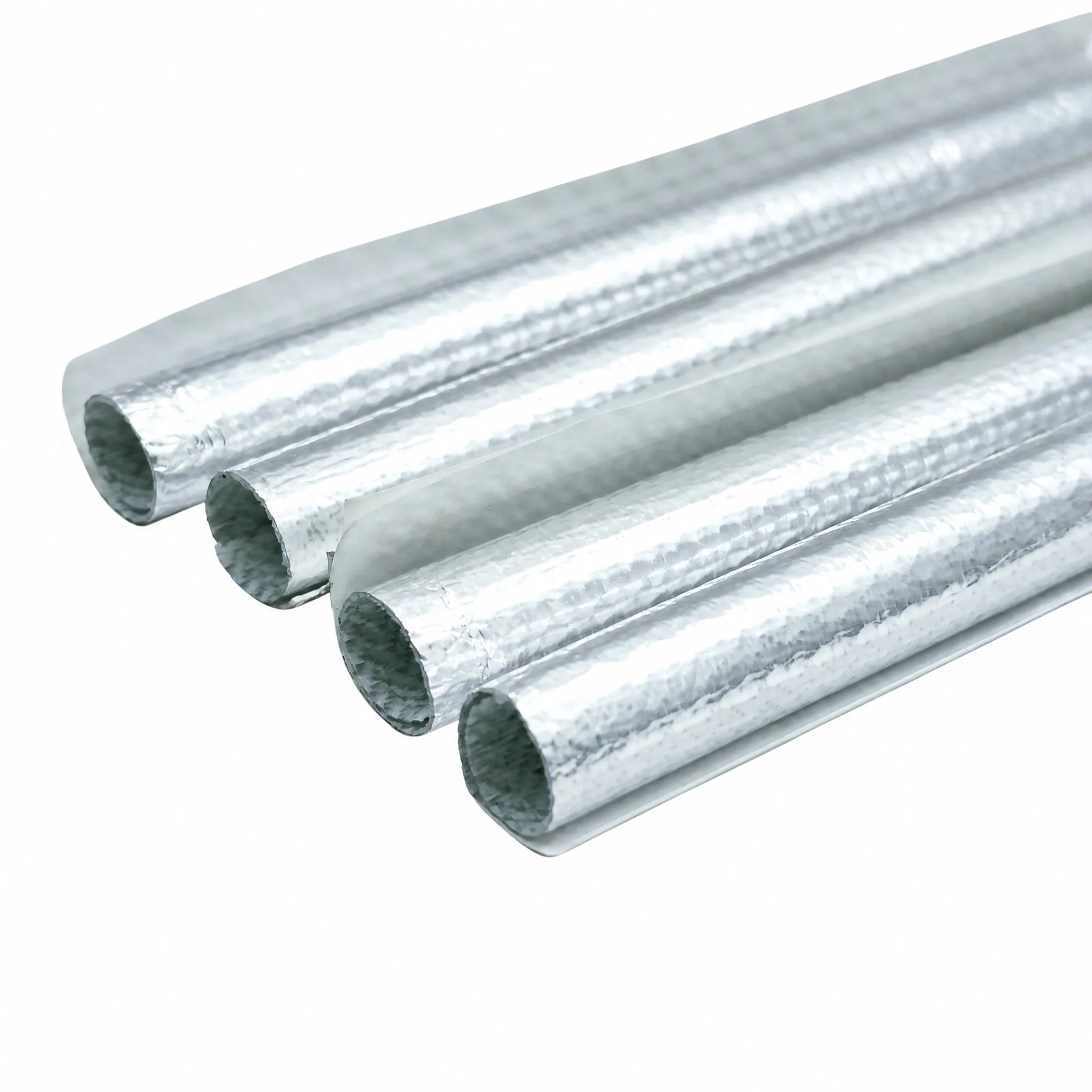

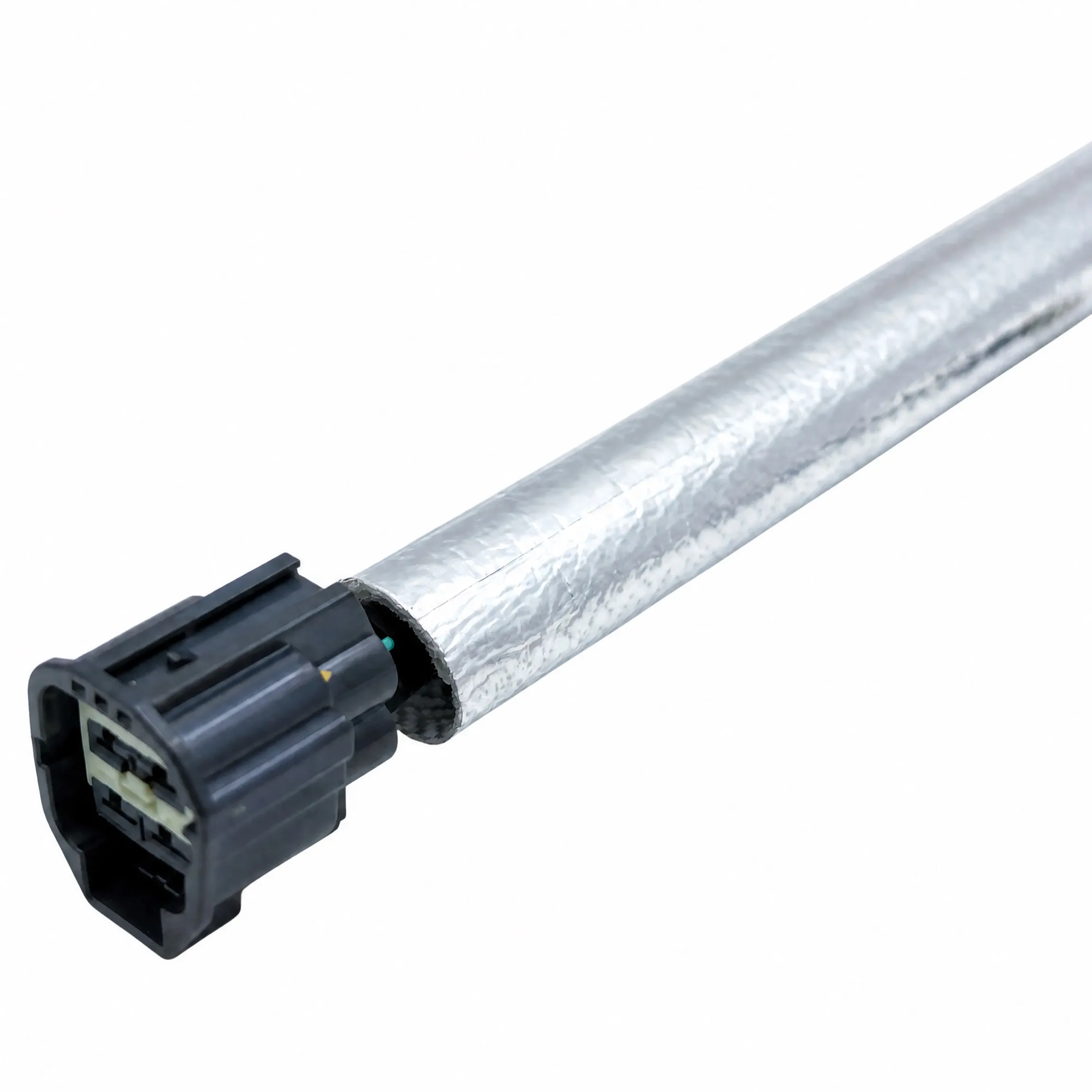

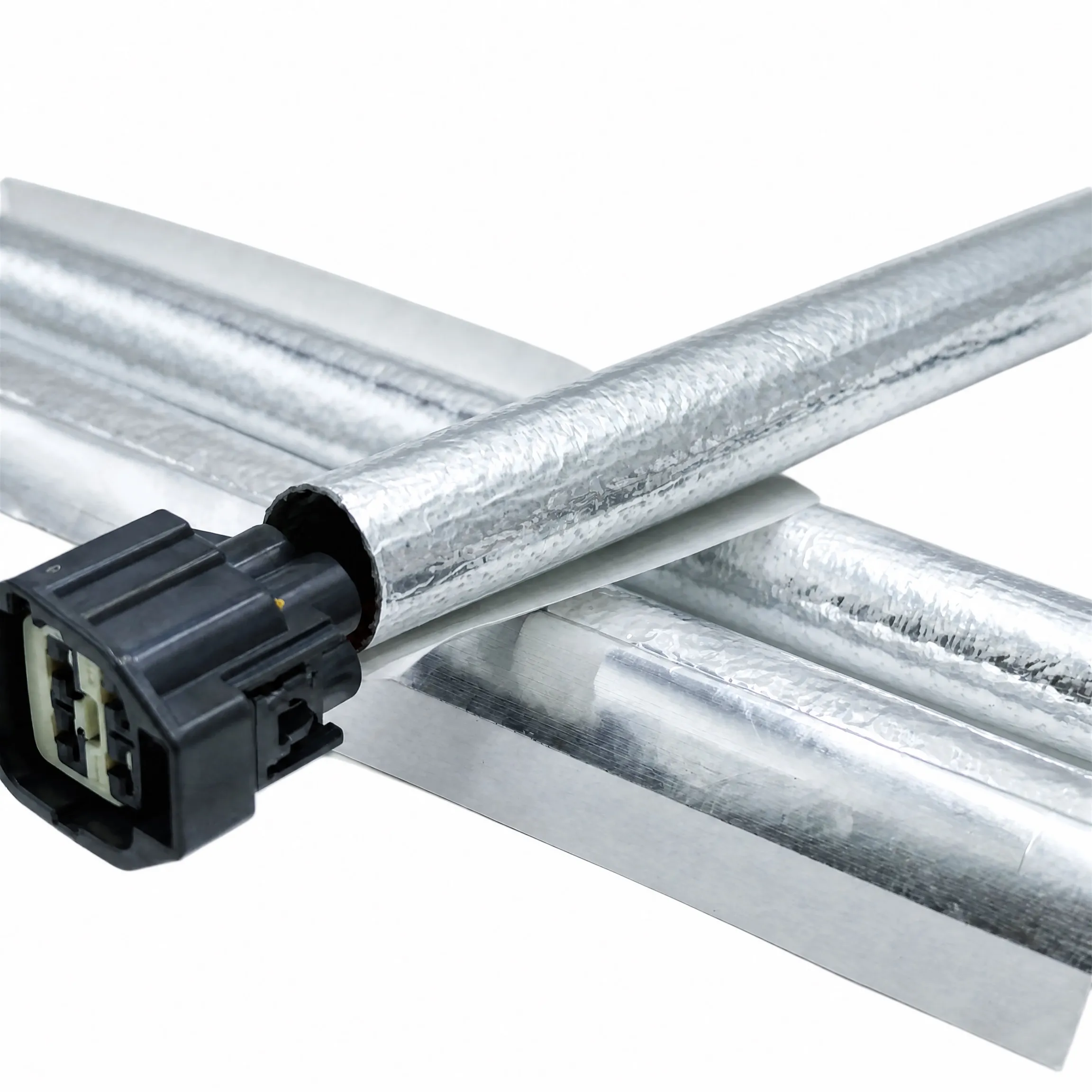

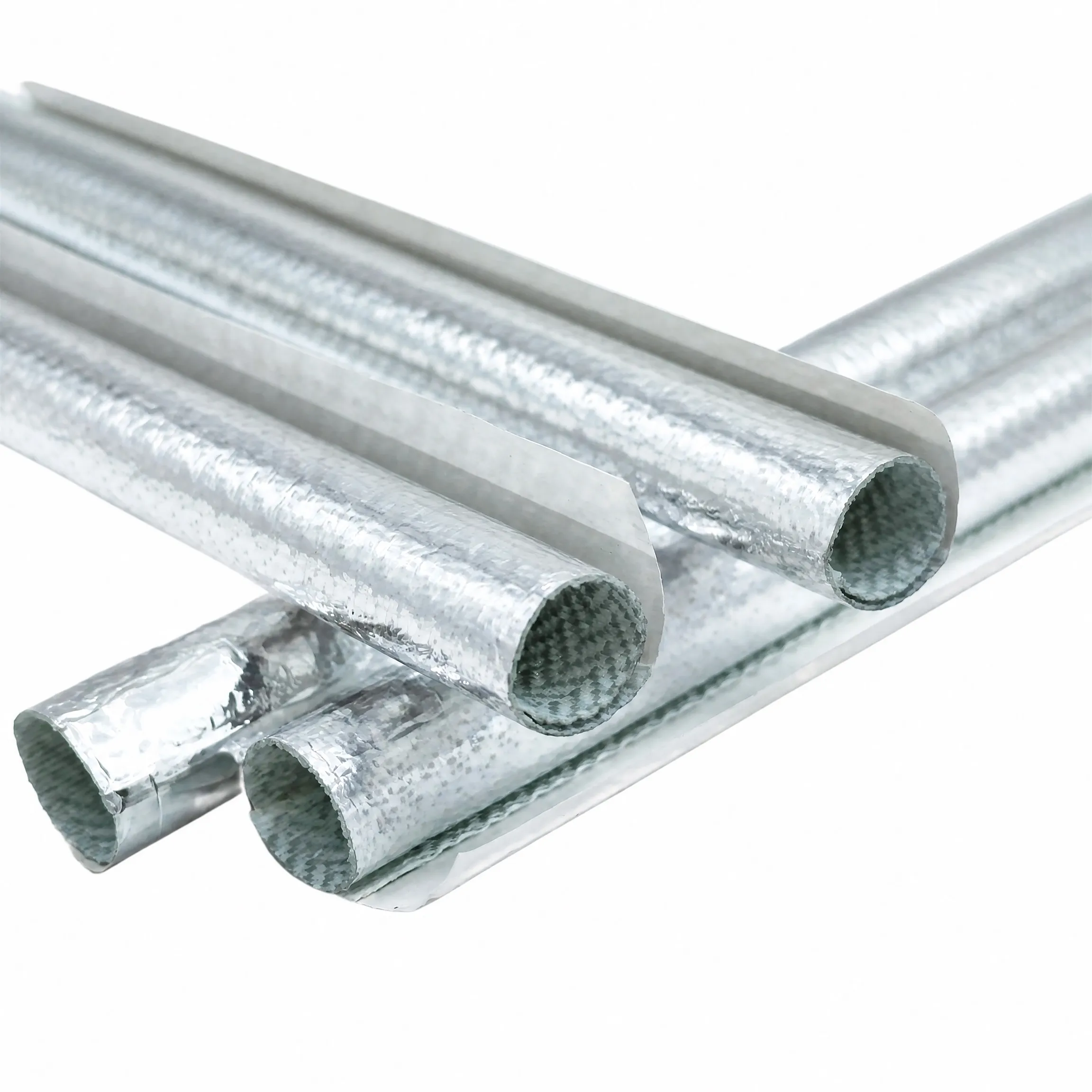

The Aluminum Foil Fiberglass Wrap-RW1460 is a composite thermal protection solution built from three material layers: an aluminum foil outer surface, a fiberglass reinforcing core, and a polyester backing — combined with an open self-adhesive structure for direct, tool-free installation. Designed to shield wiring harnesses, cables, hoses, and hydraulic lines from radiant heat, the RW1460 operates continuously from -40°C to 200°C without stratification or degeneration. Its foil surface reflects infrared radiation rather than absorbing it, providing a thermal insulation barrier exceeding 100°C per SAE J2302-2017 test conditions.

How the Aluminum Foil Fiberglass Wrap-RW1460 Addresses Radiant Heat

Radiant heat differs from conductive heat: it travels as electromagnetic radiation and degrades unprotected materials even without direct contact. In automotive and industrial environments, harnesses and hoses routed near exhaust pipes, turbochargers, or heating elements face this threat constantly. In field inspections near high-heat zones, engineers sometimes observe surface darkening or deformation in unprotected materials — an early indicator of thermal oxidation aging.

The aluminum foil layer in the Aluminum Foil Fiberglass Wrap-RW1460 redirects infrared radiation away from the protected component, functioning like a sunshade that reflects rather than absorbs heat. This approach is more reliable than relying on bulk alone: a thick single-material wrap that absorbs heat still conducts thermal energy to the protected surface, while the RW1460's reflective foil layer prevents that energy from entering the thermal stack.

Core Features of the Aluminum Foil Fiberglass Wrap-RW1460

• Working Temperature -40°C to 200°C: The RW1460 undergoes 4-hour thermal cycling at each extreme with no stratification or degeneration, confirming suitability for environments that cycle between cold-start conditions and full operating engine temperatures.
• Thermal Insulation Greater Than 100°C (SAE J2302-2017): The aluminum foil outer surface reflects radiant heat while the fiberglass core provides structural reinforcement and supplemental insulation, delivering consistent protection in sustained high-temperature environments.
• Chemical and Oil Resistance (GMW 15608-2016): When exposed to gasoline and engine chemicals, the wrap shows no stratification or degeneration, making it suitable for engine compartment routing where fluid exposure is routine.
• Open Self-Adhesive Closure: The self-adhesive backing allows direct wrapping and bonding without tools, brackets, or ties, reducing installation time in production assembly and field retrofit applications.
• Low-Temperature Flexibility (GMW 15608-2016, -40°C, 24h): A common failure mode in cold climates is thermal wrap becoming brittle and cracking during installation. The Aluminum Foil Fiberglass Wrap-RW1460 shows no cracks or layer separation after 24 hours at -40°C, confirming reliable handling in cold-weather conditions.

Performance Test Data

All performance values for the Aluminum Foil Fiberglass Wrap-RW1460 are based on standardized test methods:

The 250°C / 72-hour aging test is a demanding durability benchmark, simulating cumulative thermal exposure over a vehicle or equipment lifetime. Lot-level test reports are available through your sales representative.

Application Scenarios

Automotive Engine Compartment

The Aluminum Foil Fiberglass Wrap-RW1460 is designed for protecting wiring harnesses, fuel hoses, and coolant lines routed near exhaust manifolds, downpipes, and turbocharger housings. Its -40°C to 200°C working range matches thermal demands of modern engine bays, including diesel and performance platforms. The open self-adhesive design enables fast wrapping without additional clamps, supporting high-volume assembly operations. For Tier 1 automotive suppliers and harness manufacturers, the IATF 16949-certified production process provides documentation to support OEM supply chain qualification requirements.

New Energy Vehicle Environments

As electric and hybrid vehicle designs route high-voltage cables near motor housings, inverters, and battery thermal systems, thermal protection demands have increased compared to conventional harnesses. The RW1460 is suitable for high-voltage and high-temperature NEV environments, combining reflective radiant heat protection with fiberglass structural reinforcement. Engineers specifying materials for NEV high-voltage harnesses should separately confirm dielectric insulation voltage requirements with their design team, as these parameters fall outside the radiant heat protection scope of the Aluminum Foil Fiberglass Wrap-RW1460.

Industrial Equipment Cable and Pipeline Protection

In manufacturing equipment, process control systems, and industrial machinery, cables and hydraulic lines are frequently routed near heating elements, steam lines, or combustion zones. The flexible self-adhesive construction of the RW1460 conforms to irregular surfaces and complex routing paths without custom hardware. Nine standard sizes from 6mm to 32mm nominal inner diameter cover the majority of industrial cable and hose protection requirements, with custom lengths and non-standard sizes available on request.

Specifications

Cut to fixed length as required. Other sizes available on request.

Certifications and Quality

The Aluminum Foil Fiberglass Wrap-RW1460 is produced at a facility certified to ISO 9001, IATF 16949, ISO 14001, ISO 45001, and military standard GJB9001C. The IATF 16949 certification supports automotive supply chain audit requirements. ISO 9001 and ISO 45001 cover quality management and occupational health and safety; ISO 14001 addresses environmental management compliance. For customers with incoming quality inspection or supplier qualification requirements, lot-specific test reports are available; confirm format and scope with your sales representative before procurement.
